UVICure Plus II

UV Radiometers

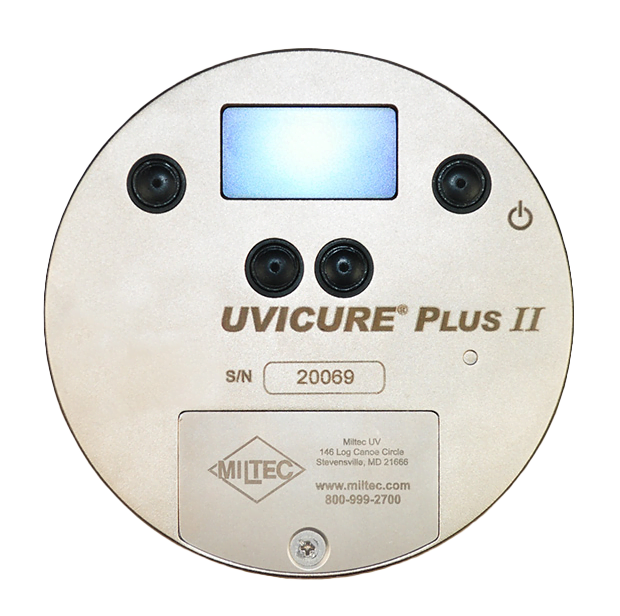

UVICURE Plus II & UVICURE Plus II Profiler

The UVICure Plus II is a single channel radiometer that measures peak irradiance (W/cm2), energy (J/cm2) on a production line, and can measure and display the irradiance profile information directly on the radiometer. The display is user adjustable and options include selecting numerical values, display of irradiance profile or reference mode for baseline comparison. The UVICure Plus II is available only as one band channel instrument for UVA (050-60520) or UVB, UVC, or UVV (050-60520-B).

With the added ability to download data for viewing, comparison, analysis and archiving using the UV PowerView Software III, the UVICure Plus II Profiler is available for UVA (050-60538) and for UVB, UVC, or UVV (050-60538-B).

Benefits and Features

  • The easy to use single button On/Off and Run Mode makes it simple to collect and view data.
  • The UVICURE Plus II provides the data in any one of the four UV wavelength ranges.
  • The Data Mode displays the UV data in joules/cm2 and watts/cm2 on one screen.
  • The Graph Mode displays a graph illustrating the UV irradiance profile as a function of time.
  • The mW/cm2 are on the y-axis and time is on the x-axis.
  • The energy is displayed for each UV band.
  • The Reference Mode allows the user to store run data in the instrument memory and allows for easy comparison to future runs.
  • The Setup Mode soft buttons are used for function selections and are indicated on the bottom of the display for easy operator selection and use.
  • The user can choose the screen mode, units to display, and the sample rate.

Specifications

Display: Easy to Read, Yellow Text on Black Background

User Selectable Dynamic Operating Ranges are: Standard High Range is UVA, UVB, UVV at 100mW/cm² – 10W/cm² and UVC at 10mW/cm² – 1W/cm² Mid-Range is UVA, UVB, UVV at 10mW/cm2 – 1W/cm2 and UVC at 1mW/cm2 -100mW /cm2 Low Power is UVA, UVB, UVV at 1mW/cm² – 100mW/cm² and UVC at 1mw/cm2 to 100mW/cm2 Units will “turn on” and display data at irradiance values much lower than the suggested operating ranges. Spectral Ranges and channels for the UVICURE® Plus II are as follows; The UVICURE® Plus II is single channel continuous monitoring radiometer. Spectral range choices are 320-390nm UVA, 280-320nm UVB, 250-260nm UVC, 395-445nm UVV, or 380-410nm UVA2. The UVA2 version was designed to monitor additive bulbs and LED systems.

Spatial Response: Approximately cosine

Operating Temperature: 0-75°C internal temperature and tolerates high external temperatures for short periods. An audible alarm indicates when temperature has exceeded tolerance.

Time-Out Period: 2 minutes DISPLAY mode with no key activity. A no time-out mode can be ordered.

Batteries: Two user-replaceable AAA Alkaline Cells

Battery Life: Approximately 20 hours with display on

Dimensions: 4.60 x 0.50 inches; 117 mm x 12.7 mm (D x H)

Weight: 10.1 ounces (289 grams)

Instrument Materials: Aluminum and stainless steel.

Carrying Case Material: Cut polyurethane interior with a scuff resistant nylon exterior cover.

Carrying Case Weight: 9 ounces (260 grams)

Carrying Case Dimensions: 10.75 x 3.5 x 7.75 inches; 274 x 89 x 197 mm (W x H x D)
