I300M | M500 | Reflector | Cold Mirror | 6″

UV Reflectors

I300M | M500 | Reflector | Cold Mirror | 6″

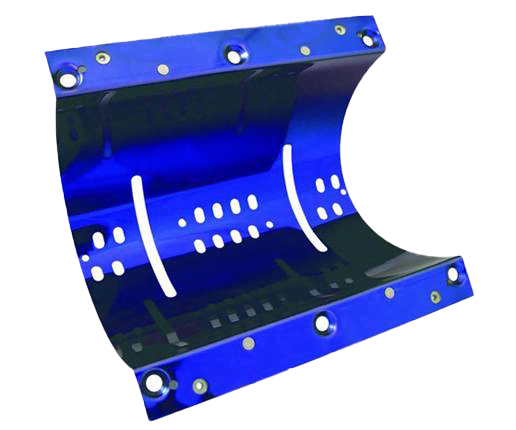

This Cold Mirror reflector kit is specified for the model I300M product family, which is the newer “metric” model of the I300 lamp family. Miltec’s Cold Mirror reflector will absorb the unwanted infrared (IR) energy, which removes virtually all of the focused IR on the work surface to minimize the heat load on the substrate. The other major benefit of Miltec’s Cold Mirror reflector is its extremely high UV reflectivity in the UVA, UVB, and UVC range. Therefore, cure speeds will not be hampered when choosing this reflector for your heat sensitive applications.

Part #380-00615

Benefits and Features

  • Direct replacement for Heraeus Part #514403
  • Performs equal to or better than OEM’s product for IR absorptivity and UV reflectivity
  • Compatible with OEM’s and Miltec’s conventional RF screen

Specifications

  • Cold Mirror Milcure MD reflector kit replaces OEM’s Cold reflector kits Used in 300 W/inch (118.11 W/cm) microwave powered 6 inch (15.24 cm) UV systems
  • Each reflector kit includes: the cold mirror main reflector, a pair of standard end reflectors, (6) countersunk mounting screws, complete set of metal gasket strips, and installation instructions
  • Specified for the following OEM lamp housing models: I300M (or I300MP), I301M (or I301MP), I300MB, I310M
